Jar fill and cap machine Location:Home - liquid filling line - Details

Jar fill and cap machine

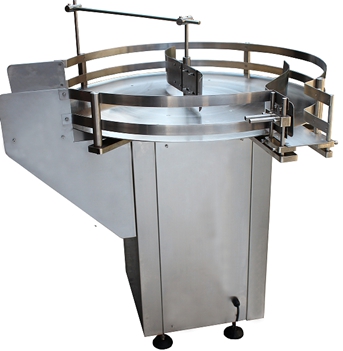

Bottle Inlet Machine ZH

-1

1. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.
2. Suitable diameter of bottles: Ф40mm~Ф100mm
3. It utilizes stepless speed regulation technology.

Major Characteristics
The template of this machine adopts stepless speed adjust foe slew, make all the bottles enter into conveyer belt in order under the rotary tangential force, less labor, boost production efficiency.
This machine can be used after electrified. Easing operating, it can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical,food, chemical etc. it is a good choice for small, medium, large factory.

Main Performance Parameter
1.Machine dimension (L×W×H) : 1700mm×1300mm×1350mm
2.Weight of machine : 300kg
3.Suitable diameter of bottles : Ф40mm~Ф100mm
4.Diameter of turntable : Ф600-1000mm
5.Power supply : AC 220V; 50Hz
6.Power : 1.5kw
7.Production capacity : 60~120bottles/minute

Jar fill and capping machine

Equipment Scope:

Cosmetics, light industry (household chemicals), pharmaceuticals, food and other industries, for the enterprise products selected plastic bottles, glass bottles for the packaging container, the device can be cream, ointment, cream, gel or viscosity fluid The equipment is divided into turntable bottles, automatic lifting and filling, automatic cover, lifting and lowering of the lid, a few bottles, such as the operation of the bottle.

Into the bottle way: by the artificial bottle to be filled into the bottle into the bottle, with the turntable plus rotating bottle into the conveyor belt.

Bottle detection: photoelectric sensor to detect the work of the main turntable on the existence of empty bottles, the test signal into the control computer to control the bottle filling, no bottle filling.

Filling function: If the front to detect a bottle, no bottle is not filling, PLC control filling mouth into the bottle for filling.

Cover device: through the vibration plate or the elevator automatically cover, check the bottle, vacuum cover cover, more efficient and more stable.

Lift gland: detection of a cover, gland device lift to cover.

Out of the bottle: the last screw cap finished bottle out of the conveyor belt, you can step into the next process.

The basic parameters of the equipment are as follows:

Filling: 5-50 grams

Yield: 40 bottles / min

Filling accuracy: ≥99%

Top cover yield: ≥99%

Screw cap yield: ≥ 99%

Labeling accuracy: ± 1mm

Host power: 2KW 220V single phase

Detail parts of the fill and cap machine

Cream fill catch cap press cap

Cream fill and catch cap device
