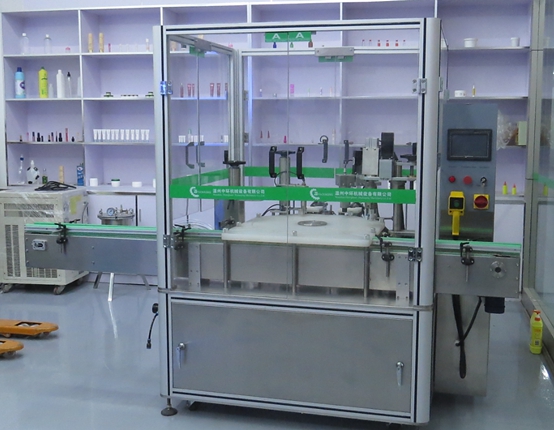

Bottle filling and capping machine

Brief Introduction

This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 50--300ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

Feature

1Man-machine dialogue system setting,visual convenient operation ,accurate filling level

2the mainframe running speed is stepless frequency conversion.

3the product quantity can be controlled.

4Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).

5Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

Main Technical Parameters

Filling Volume 10-100ml

Productivity 30-40bottles/min

Filling Precision ≤±1%

Power Supply 380V/50Hz

Capping Rate: ≥98%

Stoppering rate ≥98%

Air Supply 1.3 m3/h 0.4-0.8Mpa

Power2.0 kw

Weight 550 kg

Dimension 1800*1000*1500mm

Adhesive Front and Back Labeling Machine ZHTBS-660E

1.Double side labeling for rectangular, square bottles, and ellipticalbottles.

2.Controlled by computer (PLC) and touch screen control panel, so toachieve easy operating.

3.With volume of 0 to5L.

4.Labeling speed range : 0~26 meter/minute

Major Characteristics

1.This labeling machine is suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other lines.

2.Double side labeler for rectangular bottles and square bottles. It is automatically controlled by computer (PLC) and touch screen controlpanel, so to achieve easy operating.

3.If there is no bottle, it will not label. More than ten groups of labeling parameters can be memorized.

4.The specifications can be easily changed. Servo motor helps to realize closed-loop control. It has advantages like low malfunction rate and high efficiency as well as fast speed.

Main Performance Parameter

1.Power supply : AC220V ;50Hz ( or according to client voltage requirement)

2.Power : 3kw

3.Labeling speed range : 0~26 meter/minute

4.Suitable label roll inner Diameter size : Ф75mm

5.Suitable label roll outside Diameter size : Ф350 Maximum

6.Standard label high size : 300mm

7.Maximum label high size : 300mm

8.Machine weight : 750kg

9.machine dimension ( L×W×H):3000mm×1200mm×1600mm

Bottle outlet Machine ZH-1

1. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.
2. Suitable diameter of bottles: Ф40mm~Ф100mm
3. It utilizes stepless speed regulation technology.

Major Characteristics
The template of this machine adopts stepless speed adjust foe slew, make all the bottles enter into conveyer belt in order under the rotary tangential force, less labor, boost production efficiency.
This machine can be used after electrified. Easing operating, it can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical,food, chemical etc. it is a good choice for small, medium, large factory.
Main Performance Parameter
1.Machine dimension (L×W×H) : 1700mm×1300mm×1350mm
2.Weight of machine : 300kg
3.Suitable diameter of bottles : Ф40mm~Ф100mm
4.Diameter of turntable : Ф600-1000mm
5.Power supply : AC 220V; 50Hz
6.Power : 1.5kw
7.Production capacity : 60~120bottles/minute
